22" Hybrid Monitor
Orion 22RDHY


Orion 22" Hybrid Monitor | 22RDHY
The ORION Images economy wide 22RDHY Full HD 1920 x 1080p LED CCTV monitor is offering an affordable solution to your surveillance applications.


Our Price: $265.00

USA: FREE Ground Shipping

  • 1920 x 1080p FULL HD
  • HDMI+2xHD analog in+2xHD analog out
  • Support 5MP TVI, 4MP CVI, 5MP AHD
  • Robust Metal+ Plastic Housing



Overview:


22RDHY Hybrid PC Monitor

  • 21.5 Inch Screen Size
  • 1920 x 1080 Maximum Resolution
  • LED BLU (Back Light Unit) Display Monitor
  • 250 Nit High Brightness / 1000:1 Contrast Ratio
  • 178° / 178° Viewing Angle
  • Inputs : 2xHD analog(TVI/AHD/CVI), 1xHDMI
  • Support 5MP TVI, 4MP CVI, 5MP AHD

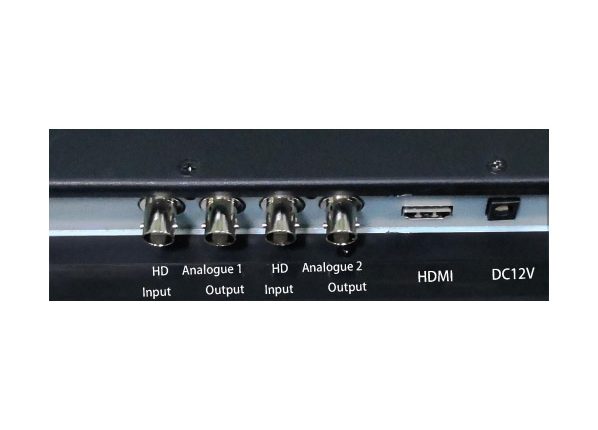

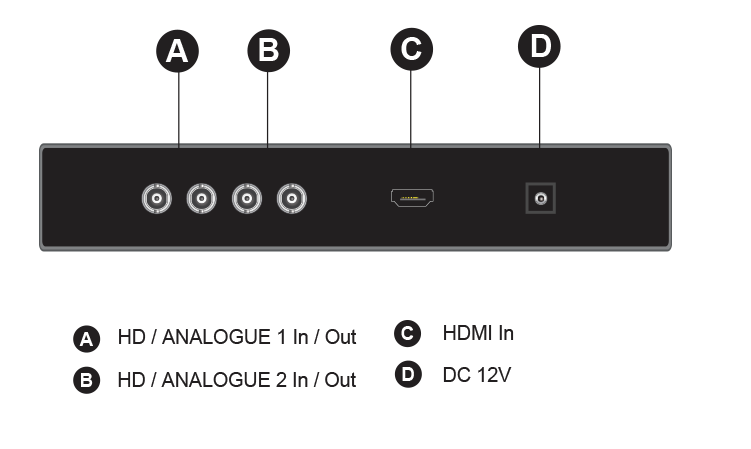

Product Interface

Interface

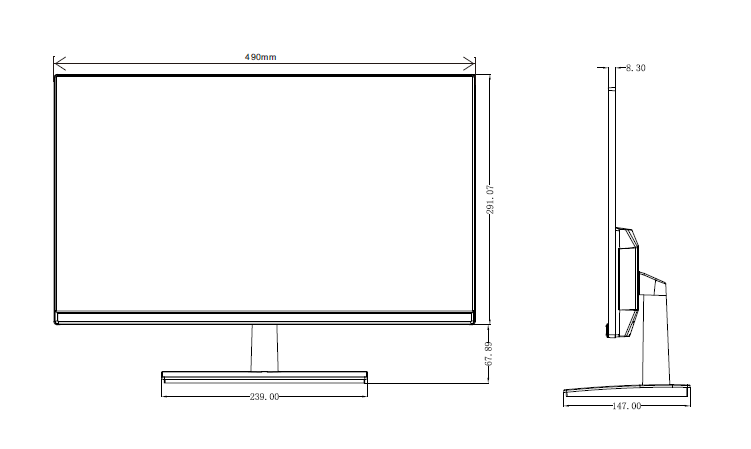

Product Dimensions (mm)

Dimensions

Specifications:


22RDHY (21.5inch HD Analog CCTV Monitor)
Display Screen Size 21. 5″ Inch
Max. Resolution 1920 x 1080 @ 60Hz
Brightness 250cd/m²
Contrast Ratio 1000 : 1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 178° / 178°
Display Color 16.7 Million
Response Time < 5ms
TV Lines 1000Lines
Interface Inputs 2xHD analog(TVI/AHD/CVI), 1xHDMI
Outputs 2xHD analog(TVI/AHD/CVI)
HDMI (VESA) 800×600/1024×768/1280×720/1280×1024/1366×768/1440×900/
1600×1200@60HZ, 19201080@25/30/50/60HZ, 2560×1440@30/60
HD analog TVI:720P@25/30fps,1080P@25/30fps,2560×1440@25/30fps,
5MP@20fps,4MP@25fps,3MP@18.75fps,

CVI:720P@25/30/50/60fps, 1080P@25/30fps,
2560X1440@25/30fps,4PM@25fps,

AHD:720P@25/30fps,1080P@25/30fps,2560×1440@25/30fps,
5MP@20fps, 4MP@25fps

Features Auto adjustment Yes
OSD Control Yes
Multi Language English,Spanish,Italian,German,French,Polish,Russia,Dutch,Danish
Dimension Package 490 x 358.96 x 147mm
Net. Weight  4.5 kgs
Cabinet Material Robust Metal+ Plastic Housing
Color Black
Base Stand Desk Top
Power Consumption: < On < 21W
Working Temp 0 ~ 40° C / 32 ~ 104° F
Circumstance Accessories Power cord, Adapter, Stand, User’s guide, HDMI cable
VESA Mounting 100 x 100mm
  *Design and Specifications are subject to change without notice

Documentation:


Download the Orion 22RDHY Display Datasheet (.PDF)
