Overview:
Contactless Infrared temperature measuring interactive kiosk, using RK3288 / RK3399 / Qualcomm MSM8953 high performance
hardware platform, equipped with industrial-class binocular camera, and infrared human temperature measuring module,
It supports automatic alarm for body temperature abnormality. Also support 9 languages voice notification.
Supports 30,000 face database
The 1: 1 comparison recognition rate is more than 99.7%, the 1: N comparison recognition rate is more than 96.7% and the live detection accuracy rate is 98.3%.
Accurate face recognition/temperature detection
Temperature detection using industrial-grade binocular wide dynamic camera,night infrared and LED dual photo flood lamp.and comparison while wearing a mask
Specifications:
|
8FIDKR
|
|
Screen
|
|
Size
|
8.0 inch IPS LCD screen
|
|
Resolution
|
800×1280
|
|
Touch
|
No support (optional support)
|
|
Processors
|
|
CPU
|
RK3288 IV core
|
|
Local storage
|
EMMC 8G
|
|

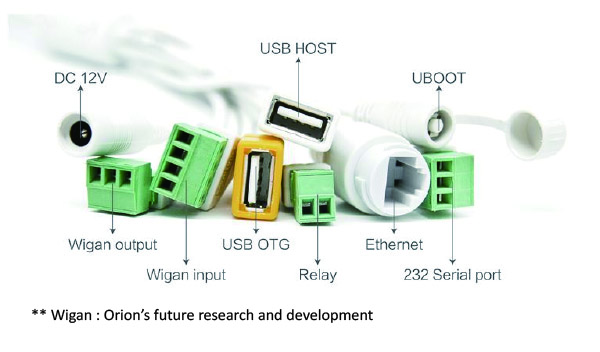

Interface
|
|
Network module
|
Ethernet
|
|
Audio
|
2.5 W/4R speakers supported
|
|
USB interface
|
USB OTG,1 Road USB HOST Standard A Pass
|
|
Serial communication
|
1 RS232 serial port
|
|
Relay output
|
1 door open signal output
|
|
Upgrade button
|
Support Uboot upgrade keys
|
|
Wired Network
|
1 RJ45 Ethernet
|
|
Camera
|
|
Resolution
|
200W pixels
|
|
Type
|
Binocular wide dynamic camera
|
|
Aperture
|
F2.4
|
|
Focus distance
|
1.64~4.92ft 50~150 cm)
|
|
White balance
|
Automatic
|
|
Light-up lamp
|
LED and infrared dual light
|
|
Function
|
|
Identification distance configuration
|
Support
|
|
UI interface configuration
|
Support
|
|
Remote upgrade of equipment
|
Support
|
|
Body Temperature Testing
|
Support
|
|

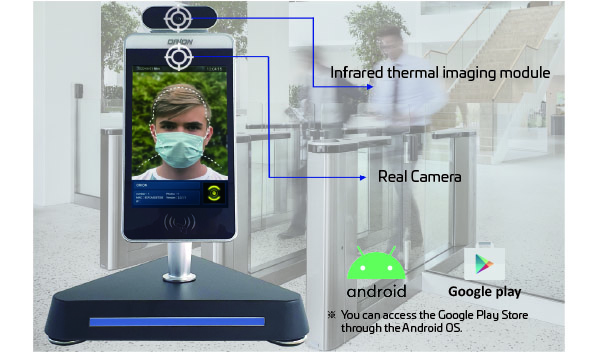

Infrared thermal imaging module Block
|
|
Temperature detection distance
|
3.281 ft / 1m (best distance 1.64 ft/ 0.5 m)
|
|
Measurement accuracy
|
≤ 32.9℉ (0.5℃)
|
|
Temperature measurement range
|
50~107.6℉ (10℃~42℃)
|
|
Pixel points
|
32X 32 lattice (total 1024 pixels)
|
|
Over temperature alarm
|
Support (temperature alarm can be set)
|
|
Conventional parameters
|
|
Power supply
|
DC12V (±10%)
|
|
Working temperature
|
32~104℉ (0℃~40℃)
|
|
Storage temperature
|
-4~140℉ (-20℃~60℃)
|
|
Power consumption
|
13.5W（Max
|
|
Installation
|
Options (table/floor)
|
|
Dimensions
|
0.972x0.436x0.082ft (296.18*132.88*25mm)
|
|
Packing list
|
|
Packige
|
Machine x 1, power adapter x 1, base x 1
|
|
Display package size
|
1.394x0.554x0.367ft (425x169x112mm)
|
|
A08F base packing size
|
4.216x1.41x1.23ft (1285*430*375 mm)
|

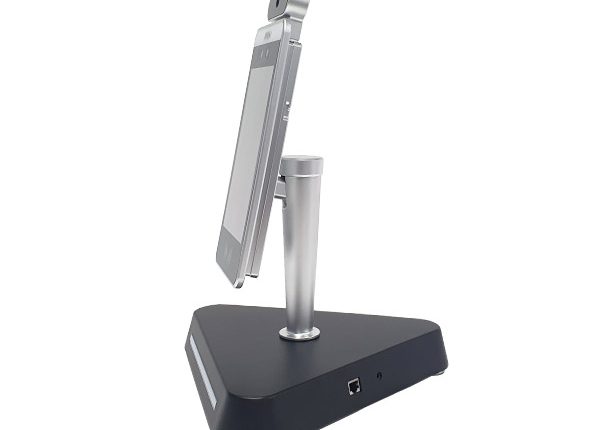

Orion 8 inch Fever detection kiosk
