R4N55NNU 55" AV VIDEO WALL MONITOR
Full HD AV Video Wall System

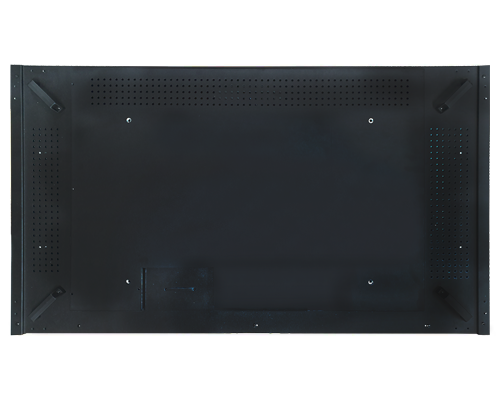

Display Front Display Back

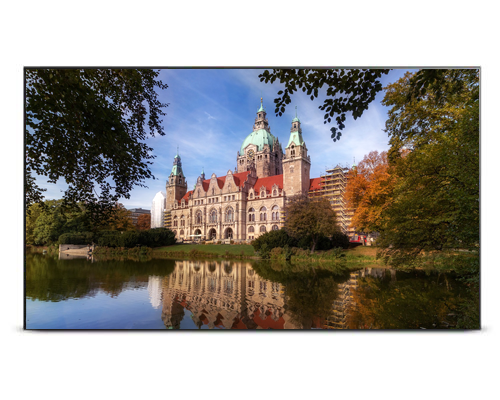

Display Front

Orion 55" Display Wall | R4N55NNU
The R4N (UHD) Series of LCD displays is the perfect solution for ultra high definition video walls. With a total of 3840×2160 (based on 2 x 2 configuration) and the ability to take a single video source and display it across the entire video wall. It is an excellent choice for command & control centers, corporate, AV and digital signage applications.

USA: FREE Ground Shipping

  • Remote Display Management
  • Spread one image across multiple monitors
  • Display Port or HDMI Input
  • Auto Power Recovery



Overview:

Video Walls for Security, Control Rooms, Commercial AV, Professional AV & has immediate benefits for:

In addition, this solution can also be used for corporate AV and Digital Signage applications such as shopping malls, airports, stadiums, lobby signage, boardrooms, and more. Whether small lobby display or extra large video walls, the tiled R4N series makes statement. Public Display Signage receives 10 times the eye contact of static signage and is creating cost-effective opportunities to improve customer service, safety, way finding, branding, training, and communications.

Unlike plasma technology, LCD video walls require less power consumption and with auto pixel shift built in they are not subject to permanent, irreversible burn-in. Unlike individual mount LCD’s that leave gaps between each monitor, tiled video walls offer more flexibility, scalability and the possibility for a higher resolution.

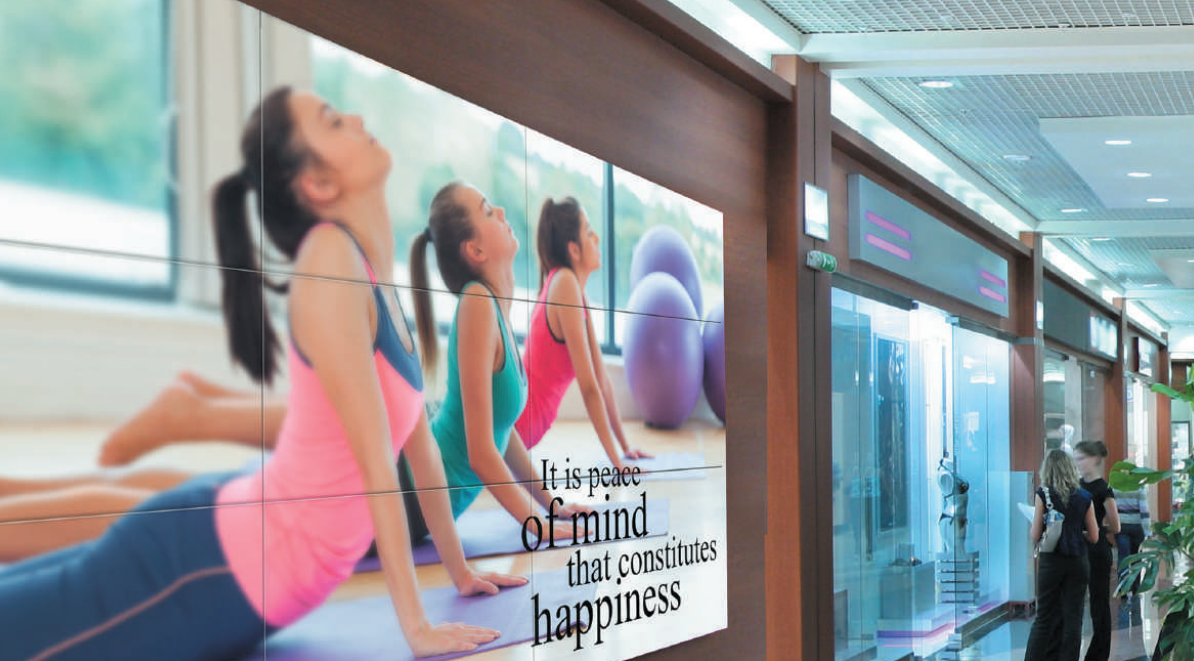

Overview Photo Display Wall

Features:

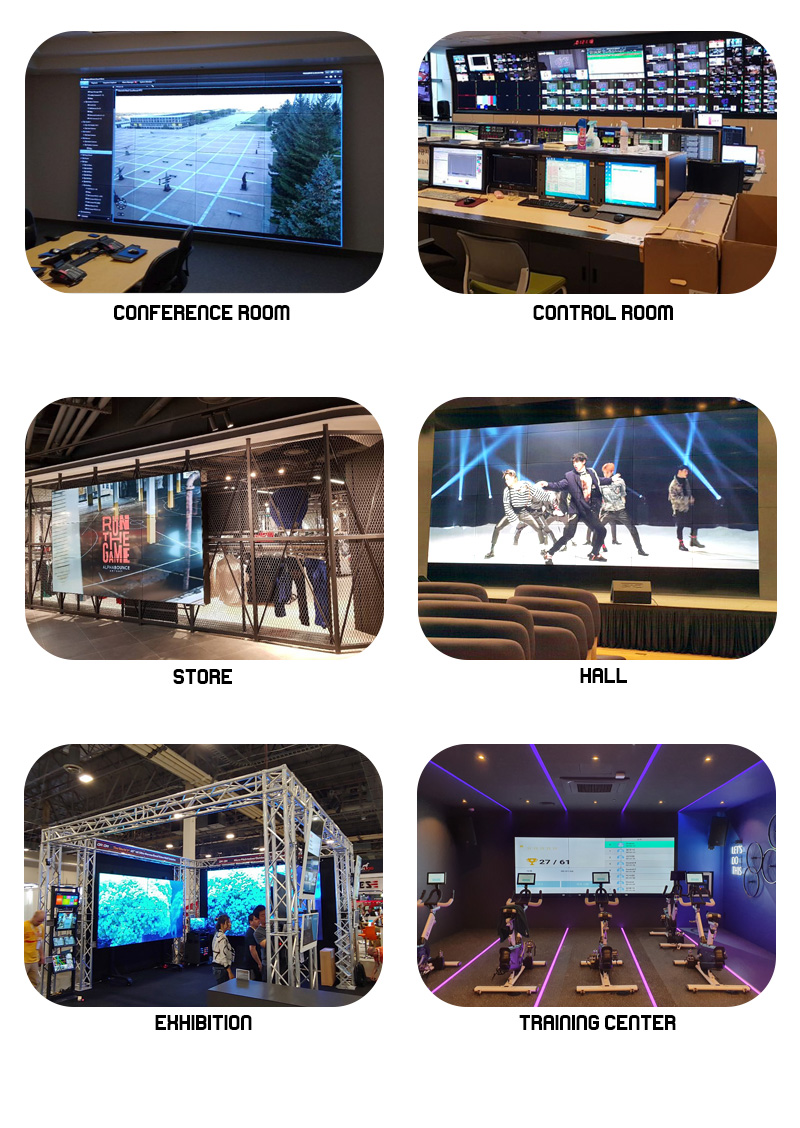

Conference Room Use

R4N55NNU (Full HD AV Video Wall System)



55 Inch Screen Size UHD Video Wall

2.3mm/1.2mm Flat Bezel Width is Perfect for tight mounting Video Wall

3840×2160 UHD Resolution

Perfect for both Video Wall or Independent Mount Solutions

R4N Video Wall has Immediate Benefits for Security Room, Retail, Shopping Mall, Corporation, Broadcast, Transportation, Government, Health Care, Casino and more

Display Port 1 In / 1 Out, HDMI 3 In , DVI In, VGA In, Audio 1 Out, RS232 1 In / 1 Out

PIP / PBP / QUAD Displays

Specifications:


R4N55NNU

Bezel Width

Top / Bottom / Left / Right

9.4mm / 9.4mm / 10.7mm / 10.7mm

Display



Screen Size

54.64 Inch

Max. Resolution

3840 x 2160 @ 60Hz

Pixel Pitch

0.315 x 0.315mm

Brightness

500cd/m2

Contrast Ratio

1100 : 1

Aspect Ratio

16 : 9

Viewing Angle

178o / 178o

Display Color

1.07 Billion (10bits)

Response Time

< 8ms (Gray to Gray)

Video System

NTSC / PAL

Interface



Display Port In/ Out

1 / 1

HDMI Input

3

DVI In

1

VGA In

1

RS232 In / Out

1 / 1

Audio Out (3.5 Ø stereo)

1

Transmitter



IR Remote Control

Yes

Features



Multi Display Function

PBP / PIP / TRI / QUAD

Temperature Sensor

Yes (Option)

De-Interlace

Yes

Noise Reduction

Yes

Auto Fan Control System

Yes (Option)

Auto Pixel Shift

Yes

Auto Source Switching

Yes

Edge Setting (Horizontal / Vertical)

Yes

Advance Auto Power Recovery

Yes

Multi Language

English

RS-232C Control

Monitor OSD control using PC

Cabinet



Color

Black

Material

Electro-Galvanized Steel

Outline Dimension



Dimension (W x H x D)

48.74" x 27.90" x 2.48"

Net. Weight

26kg (57.32 lbs)

Warranty



Part / Labor

3year / 3year

Circumastance



Operating Temperature

0o ~ 40o C / 32o ~ 104o F

Power



Electrical Ratings

AC 120 ~ 240V (50/60Hz)

Power Consumption

< 190W

Mount



VESATM   Mount Size

600 x 400mm

Video Wall

WFS, WES, WSD, WSR, CCM

Stand Alone

WB-4780

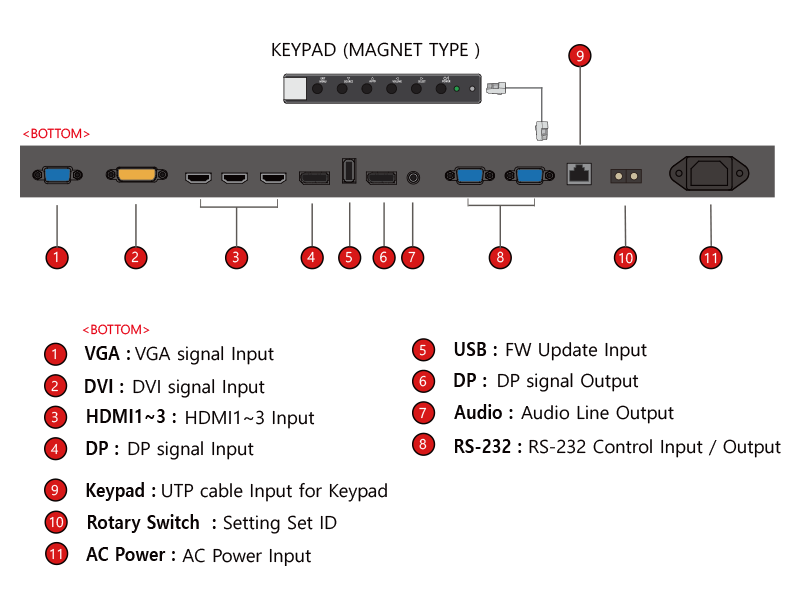

Product Interface

Interface

Documentation:


Download the Orion R4N55NNU Display Datasheet (.PDF)

Download the Orion R4N55NNU Display Dimensions Datasheet (.PDF)

Pricing Notes:

Orion Products
Orion 55" Display Wall
USA: FREE Ground ShippingOrion 55" Display Wall
#R4N55NNU
Contact us for pricing!
