R4N46UHF 46" AV VIDEO WALL MONITOR
Full HD AV Video Wall System


Orion 46" Display Wall | R4N46UHF
The R4N (FHD) Series of LCD displays is the perfect solution for ultra high definition video walls. With a total of 3840×2160 (based on 2 x 2 configuration) and the ability to take a single video source and display it across the entire video wall. It is an excellent choice for command & control centers, corporate, AV and digital signage applications.


USA: FREE Ground Shipping

  • Remote Display Management
  • Spread one image across multiple monitors
  • Display Port or HDMI Input
  • Auto Power Recovery



Overview:

Video Walls for Security, Control Rooms, Commercial AV, Professional AV & has immediate benefits for:

In addition, this solution can also be used for corporate AV and Digital Signage applications such as shopping malls, airports, stadiums, lobby signage, boardrooms, and more. Whether small lobby display or extra large video walls, the tiled R4N series makes statement. Public Display Signage receives 10 times the eye contact of static signage and is creating cost-effective opportunities to improve customer service, safety, way finding, branding, training, and communications.

Unlike plasma technology, LCD video walls require less power consumption and with auto pixel shift built in they are not subject to permanent, irreversible burn-in. Unlike individual mount LCD’s that leave gaps between each monitor, tiled video walls offer more flexibility, scalability and the possibility for a higher resolution.

Overview Photo Display Wall

Features:


Conference Room Use

R4N46UHF (Full HD AV Video Wall System)



46 Inch Screen Size Full HD Video Wall


2.3mm/1.2mm Flat Bezel Width is Perfect for tight mounting Video Wall


1920 x 1080p Full HD Resolution


Perfect for both Video Wall or Independent Mount Solutions


R4N Video Wall has Immediate Benefits for Security Room, Retail, Shopping Mall, Corporation, Broadcast, Transportation, Government, Health Care, Casino and more


Display Port 1 In / 1 Out, HDMI 3 In , DVI In, VGA In, Audio 1 Out, RS232 1 In / 1 Out


PIP / PBP / QUAD Displays

Specifications:


R4N46UHF (46 Inch Full HD AV Video Wall System)
  Display   Screen Size 46 Inch
  Bezel Width (T / B / L / R) 2.3mm/1.2mm / 2.3mm/1.2mm
  Max. Resolution 1920 x 1080 @ 60Hz
  Pixel Pitch 0.530 x 0.530mm
  Brightness 700cd/m²
  Contrast Ratio 3500 : 1
  Aspect Ratio 16 : 9
  Viewing Angle (H / V) 178° / 178°
  Display Color 16.7 Million
  Response Time < 8ms (Gray to Gray)
  Video System NTSC / PAL
  Interface   Display Port In / Out 1 / 1
  HDMI Input 3
  DVI  In / VGA In 1 / 1
  RS232 In / Out 1 / 1
  Audio Out 1
Transmitter   IR Remote Control Yes
  Features   Multi Display Function PIP / PBP / QUAD
  Deinterlacing Yes
  Noise Reduction Yes
  Auto Fan Control System Yes (Option)
  Auto Pixel Shift Yes
  Advanced Auto Power Recovery Yes
  RS-232C Control Monitor OSD control using PC
  Temperature Sensor Yes (Option)
  Edge Setting (H / V) Yes
  Auto Source Switching Yes
  Multi Language English
  Dimension W H D   Outline Dimension 1021.98 x 576.57 x 70.5 mm
(40.24″ x 22.7″ x 2.78″)
  Net. Weight 21Kg (46.3 lbs)
  Cabinet   Material / Color Electro-Galvanized Steel / Black
  Warranty   Part / Labor 3year / 3year
  Power   Consumption: < On < 162W
  Electrical Ratings AC 100 ~ 240V (50/60Hz)
  Circumstance   Operating Temperature 0 ~ 40°C / 32 ~ 104°F
  Mount   VESA™ Mount Size 600 x 400mm
  Wall WB-4663
  Video Wall WSR
  *Design and Specifications are subject to change without notice

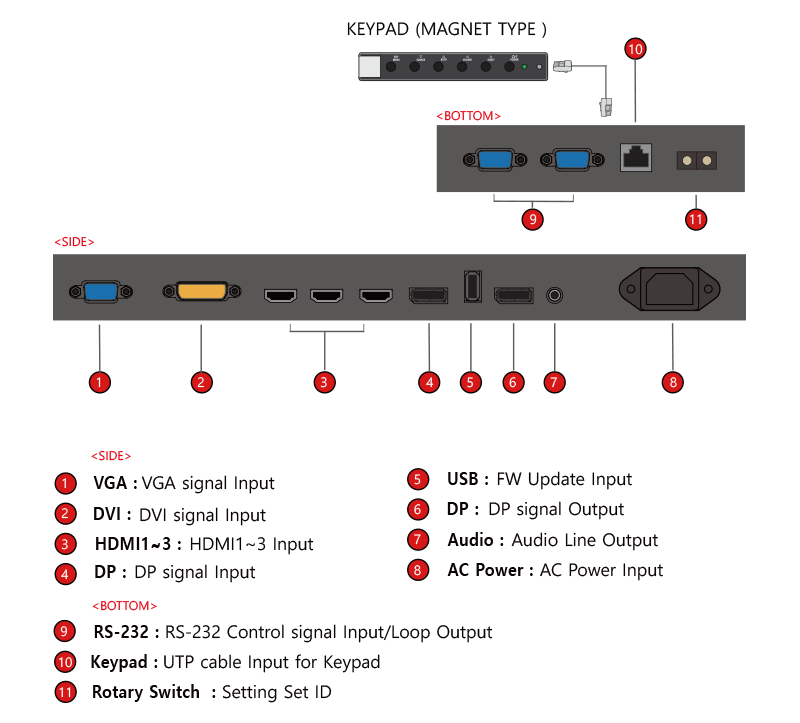

Product Interface

Interface

Documentation:


Download the Orion R4N46UHF Display Datasheet (.PDF)

Download the Orion R4N46UHF Dimensions Datasheet (.PDF)

Pricing Notes:

Orion Products
Orion 46" Display Wall
USA: FREE Ground ShippingOrion 46" Display Wall
#R4N46UHF
Contact us for pricing!
